Name: Hybrid bond CNC diamond wheel for high-performance flute grinding
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 1v1
Price: 50.00 USD
Availability: InStock

होम उत्पाद सीएनसी पीसने वाले पहिया

Hybrid bond CNC diamond wheel for high-performance flute grinding

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	Shine Abrasives
प्रमाणन:	ISO
मॉडल संख्या:	4V2 1A1 14A2 1v1

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	2 पीसी
मूल्य:	FOB
पैकेजिंग विवरण:	एक कागज के डिब्बे में
प्रसव के समय:	5 काम के दिन
भुगतान शर्तें:	एल/सी, टी/टी
आपूर्ति की क्षमता:	एक सप्ताह में 1000 पीसीएस

संपर्क करें

विस्तृत उत्पाद विवरण

आवेदन:	सीएनसी मशीनें	रफ़्तार:	6000rpm
रंग:	चाँदी	अधिकतम दबाव:	5MPA
आकार:	6 इंच	आर्बर आकार:	7/8 इंच
अधिकतम तापमान:	150 ℃	हीरा रिम का आकार:	6x6 मिमी
बांड प्रकार:	हाइब्रिड	गहरा संबंध:	राल
एचएस कोड:	6804211000	क्षमता:	तेज़
अधिकतम गति:	100 मीटर/एस	अधिकतम आरपीएम:	6000rpm
कठोरता:	उच्च
प्रमुखता देना:	Hybrid bond CNC diamond wheel , CNC flute grinding wheel , high-performance diamond grinding wheel

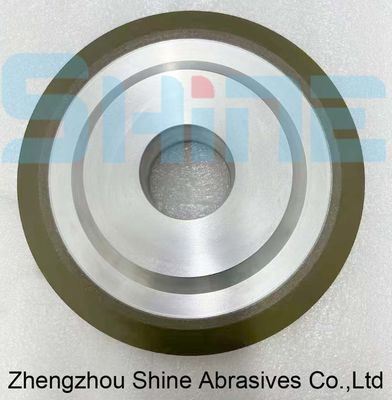

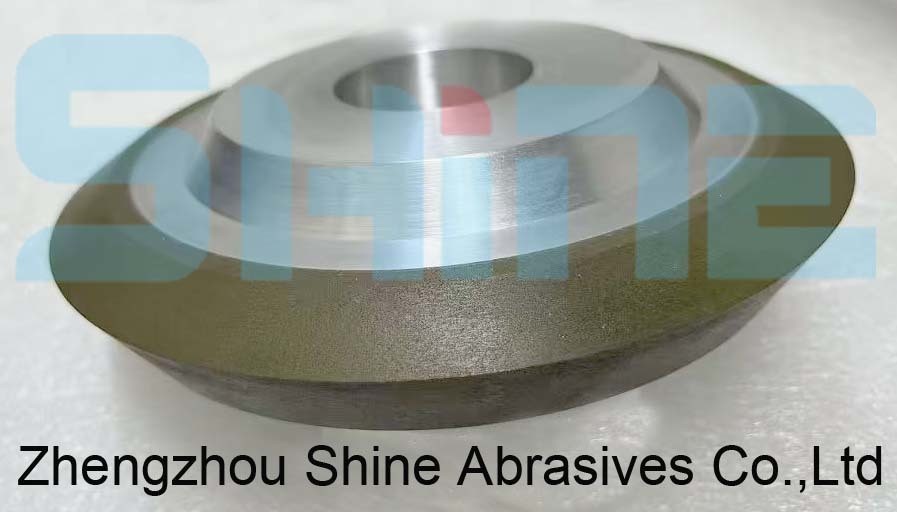

Hybrid bond CNC diamond wheel for high-performance flute grinding

Hybrid bond CNC diamond wheel for high-performance flute grinding.Hybrid bond is Resin Bond, Metal Bond, and or processing methods to create a Hybrid that encompasses enhanced properties to deliver high performance results for some of manufacturing’s toughest grinding applications.

Wheel sizes form:

Diameter of D	Diamond depth of U	R	X	H
50mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
75mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
100mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
125mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
150mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
175mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
200mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize

Others sizes are available per requested.

*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools

*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents

*The particle size can reach up to 10000#

*Cutting edge quality less than 5 microns

*Provide dressing wheels to trim PCD grinding wheels
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.
